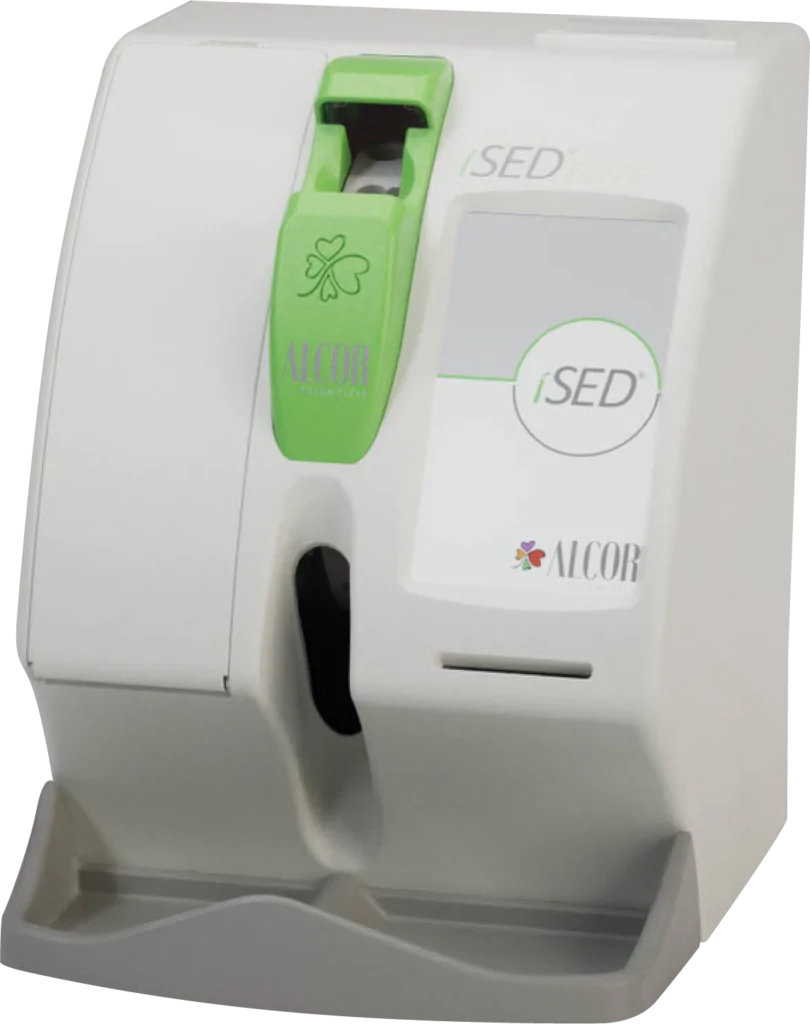

iSED® improves laboratory efficiency by providing virtually instantaneous results with a fully automated workflow. Compared to the Westergren method, iSED® requires >96% less hands-on time and reduces turnaround time up to 94%.
iSED® brings a novel approach to ESR by directly measuring RBC aggregation with capillary photometry during rouleaux formation. Results are available in seconds and highly correlated to the Westergren method. No disposables or sample setup required. Capped primary EDTA tubes can be directly inserted into the instrument, and mixing, sampling, and reading is performed by iSED® for true walk-away automation.
iSED® Specifications
| Principle of Measure: | Quantitative Capillary Photometry |
| Result Range: | 1-130 mm/hr |
| Sample Capacity: | 20 samples (random access loading) |
| Test Throughput: | Up to 180/hour |
| Sample type: | Primary EDTA tube; pediatric tube compatible |
| Sample volume: | 500 µl whole blood (100 µl aspirated volume) |
| Sample Mixing: | Automated on board |
| Quality control: | SEDiTROL® Controls |
| Barcode Reader: | Internal |
| Printer: | Internal |
| Dimensions (H x W x D): |
36 x 27 x 35 (cm)/14.17 x 10.63 x 13.78 (in) |
| Data Storage Capacity: | >4 million |
| LIS Connectivity: | LAN TCP/IP or serial RS232 DB9 port |
| Voltage: | 100-240VAC |
| Frequency: | 50-60 Hz |
| Power: | 60W |
iSED® Ordering Information
| Item Description | Unit | Part No. |
|
iSED® ESR Analyzer |
1 each |
112-00101 |
|
Test card: 250 tests |
1 each |
112-00250 |
|
Test card: 1000 tests |
1 each |
112-01000 |
|
Test card: 2000 tests |
1 each |
112-02000 |
|
Test card: 5000 tests |
1 each |
112-05000 |
|
SEDiTROL® Quality Controls (Levels 1 & 2) |
Pack of 2 x 4.0 ml |
DSC01 |
|
Pack of 6 x 4.0 ml |
DSC06 |
|
|
iWASH® Wash Fluid |
Pack of 4 |
112-12-001 |
|
iWASTE® Container |
Pack of 4 |
112-12-005 |
|
Pack of 24 |
112-12-002 |
|
|
ALCOR® Thermal Printer Paper |
Pack of 5 |
DS-05233 |
